Salient Features:
- Machine type: 2-way, fast cooling and heating
- Inverter technology is super energy efficient
- High performance, environmentally friendly R32 refrigerant
- Unique, compact round cabinet design with LED screen displaying temperature
- Automatic air swing mode operates smoothly and quietly
- Self-diagnose problems
- Automatically restarts when power is restored.
- Made in: Malaysia
Unique design with strong performance

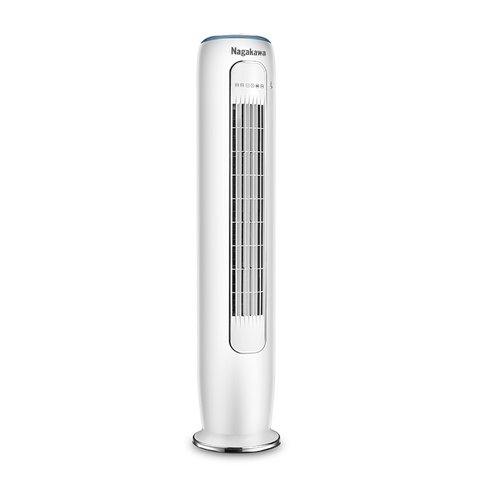

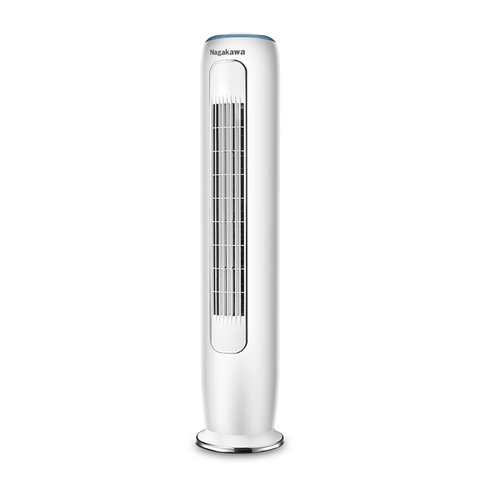

The Nagakawa NIP-A30DC Inverter air conditioner has a unique and compact round cabinet design. The cooling side of the air conditioner is equipped with a convenient LED light that accurately displays temperature information. The machine has an ability to operate extremely strong with a cooling capacity of 28000 BTU (3.5 HP), optimally in an area of 40 - 45m² such as living room, sitting room or meeting room.
2-way air conditioner: cooling and heating
Nagakawa NIP-A30DC air conditioner is a 2-way cooling/heating air conditioner that, in addition to the basic cooling feature, is also equipped with additional heating and cooling features in the summer and heating in the winter. This is an ideal choice to install for a variety of uses, helping to fight against the harsh climate of Vietnam.
Inverter technology saving energy
Nagakawa NIP-A30DC round cabinet air conditioner uses advanced DC Inverter technology to help save up to 50% of electricity consumption. In addition, the air conditioner has an effective Eco function that helps optimize cooling, save electricity while still ensuring the comfort and cooling features of the machine.
Turbo – Rapid cooling in just 3 minutes
Nagakawa 2-way round cabinet inverter air conditioner NIP-A30DC integrates benefits such as: sleep operation function, cooling/dehumidification/ventilation mode, self-diagnosis function, automatic air swing mode , restart automatically.
Integrating various smart utilities
Điều hòa Inverter tủ tròn Nagakawa 2 chiều NIP-A30DC tích hợp những tiện ích như: chức năng vận hành khi ngủ, chế độ làm lạnh/ hút ẩm/ thông gió, chức năng tự chẩn đoán sự cố, chế độ đảo gió tự động, tự khởi động lại.
Self-diagnose problems
With the smart self-diagnosis function in the Nagakawa 2-way round cabinet air conditioner NIP-A30DC, users can easily identify the condition of the machine in use. When a problem or error occurs on the air conditioner, the error code will be displayed on the Remote screen. You can easily identify, diagnose and find solutions quickly without having to struggle to find a repairer.
Auto-restart when power is on
When a sudden power cut occurs, the air conditioner will automatically remember the current settings (temperature, wind direction...). After power is restored, the Nagakawa 2-way air conditioner NIP-A30DC will automatically restart with all functions in use before the power failure. This helps you avoid having to restart the device and reset the desired modes, helping to save significant time.
Advanced refrigerant R32
Nagakawa NIP-A30DC uses R32 gas which is the latest generation refrigerant. Of the three popular types of refrigerant gas used in current residential air conditioners (R22, R410A, R32), R32 refrigerant provides the highest energy efficiency, saves electricity and is especially environmentally friendly.
Pure copper tube with spiral groove
The Nagakawa NIP-A30DC round cabinet air conditioner is equipped with pure copper pipes with spiral grooves for high durability. The spiral groove structure makes heat exchange 30% more efficient, helping to save energy and cool faster.
Outstanding Warranty
Nagakawa NIP-A30DC air conditioner has a 1-to-1 exchange warranty for 2 years.
Specifications | Unit | NIP-A30DC | |
Nominal output | Cooling | Btu/h | 28,000 (3,240-30,000) |
Heating | Btu/h | 30,000 (3,240-31,500) |
|
Electricity consumption | Cooling | W | 2,650 (350-3,000) |
Heating | W | 2,500 (350-3,100) |
|
Amperage | Cooling | A | 11.2 (1.6-13.7) |
Heating | A | 10.8 (1.6-14.1) |
|
Electricity supply | V/P/Hz | 220-240/ 1/ 50 | |
Internal air volume (C) | m3/h | 1,200 | |
Moisture seperation capacity | L/h | 3 | |
Noise level (high) | Internal | dB(A) | 44 |
External | dB(A) | 56 | |
Body dimensions (RxSxC) | Internal | mm | 348x348x1750 |
External | mm | 853x349x602 | |
Body weight | Internal | kg | 29 |
External | kg | 36 | |
Refrigerant | R32 | ||
Pipe diameter | Liquid | mm | F6.35 |
Vapor | mm | F12.72 | |
Tube length | Standard | m | 5 |
Max | m | 25 | |
Maximum height difference between internal and external department | m | 10 |
