Salient features:
- 360-degree automatic air wings for quick and comfortable cooling
- Machine type: 1-way cooling
- Compact design with a thickness of 290mm suitable for installation in any space
- High durability, easy installation and maintenance
- Suitable for all constructions
- Environmentally friendly R32 refrigerant
- Warranty: 2 years

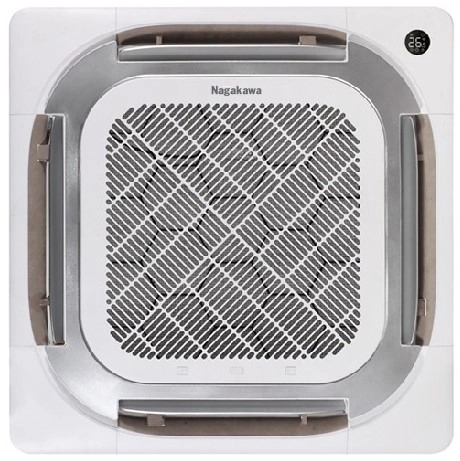

Cassette Nagakawa NT-C36R2M32 18000 BTU/h 1-way cooling ceiling air conditioner is a product with a recessed design that makes your building more modern with delicate white color and is easy to install in any architectural space.
The 360-degree automatic air wings provide fast, comfortable cooling.
4-speed fan with 8 airflow directions creates soft and light airflow, helping to evenly distribute the temperature throughout the office, bringing a feeling of refreshment right from the first minute for the user. Air swing mode automatically diffuses evenly in the space with the quick cooling function, the air is spread evenly to help balancing the room temperature.
Environmentally friendly R32 refrigerant
The Nagakawa NT-C36R2M32 Cassette ceiling air conditioner uses the latest and most advanced R32 refrigerant. This is a refrigerant with high cooling efficiency, environmentally friendly, contributing to reducing emissions and not causing the greenhouse effect.
Compact design, easy installation and maintenance
The product has a compact design with a thickness of only 290mm, equipped with a condensate drain pump with pressure up to 750mm, easy to install pipes in all space conditions, especially suitable for offices, restaurants with low ceiling.
Moreover, the panel of the air conditioner is easily disassembled for cleaning and maintenance, thus saving time & cost of periodic maintenance for the product.
Automatic fault diagnosis
When abnormal operation occurs, the air conditioner will detect and automatically shut down to protect the system. Furthermore, the indoor unit displaying “EI OC” will automatically stop when a refrigerant leak is detected.
Timeless durability
One-way Cassette Nagakawa NT-C36R2M32 36000 BTU/h is equipped with a Golden Fin-coated radiator. This is an anti-corrosion coating that can withstand salty air, rain and other corrosive elements, improving heat transfer efficiency, making the machine durable in all kinds of weather and climate typical of Vietnam.
Suitable for all projects
Cassette Nagakawa NT-C36R2M32 ceiling air conditioner has a capacity of 2HP, suitable for all room areas from exhibition halls, restaurants, cafes, to corporate offices...
2 years warranty period
The warranty period of authentic Cassette Nagakawa NT-C36R2M32 ceiling air conditioners for the whole machine is 2 years at the construction site. The system of warranty stations covers the whole country, professionally trained technical staff will come to the place to check, troubleshoot and solve problems for customers to be most satisfied with the following criteria: Fast, efficient and friendly.
Model | NT-C36R2M32 | ||
Capacity |
Cooling | kW | 10.548 |
Btu/h | 36000 | ||
Electric Data | Cooling Power Input | W | 3600 |
Cooling Rated Current | A | 5.21 | |
Performance |
EER | W/W | 2.93 |
Indoor | |||
Features | Power Supply | V/Ph/Hz | 380~415V /3 pha / 50 Hz |
Air Flow Volume (High/Mid/Low) |
m³/h | 1955/1653/1403 | |
Noise Level (High/Mid/Low) |
dB(A) | 49/47/45 | |
Dimension (D x R x C) |
Net (Body) | mm | 830x830x245 |
Packing (Body) | mm | 910x910x290 | |
Net (Panel) | mm | 950x950x55 | |
Packing (Panel) | mm | 1035x1035x90 | |
Weight | Net (Body) | kg | 26 |
Gross (Body) | kg | 30 | |
Net (Panel) | kg | 6 | |
Gross (Panel) | kg | 9 | |
Outdoor | |||
Performance | Power Supply | V/Ph/Hz | 380~415V /3 pha / 50 Hz |
Noise Level (High/Mid/Low) |
dB(A) | 60 | |
Dimension (R x C x S) |
Net | mm | 946x810x410 |
Packing | mm | 1090x885x500 | |
Weight | Net | kg | 66 |
Gross | kg | 71 | |
Refrigerant | Type | R32 | |
Charged Volume | kg | 16 | |
Piping | Liquid side/Gas side | mm | 9.52/15.88 |
Max. pipe length | m | 30 | |
Max. difference in level | m | 20 | |
Operation Range |
Cooling | ℃ | 18-43 |
####
