Salient features:
- Efficiently energy saving
- Clean air, health-protecting thanks to the Hepa Filter fine dust filter
- Capacity 1.5 HP - 12,000 BTU suitable for room with 15-20 m2 in dimension
- Anti-oxidation, increased service life thanks to the Golden Fin gold-plated heat exchanger.
- The cold air spreads quickly and evenly throughout the room with the 4D auto-swing function.
- Origin: Malaysia
- Product warranty: 2 years

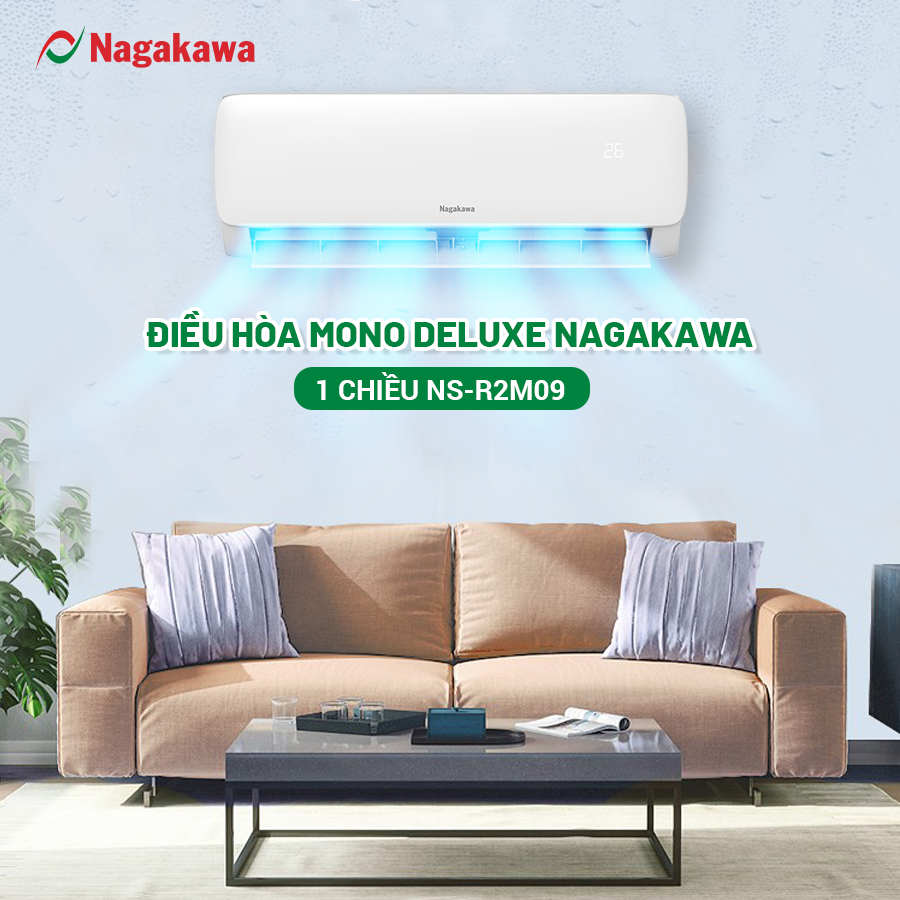

Nagakawa 1-way air conditioner NS-C12R2M09 has a delicate design with elegant colors, soft edges suitable for any interior space.

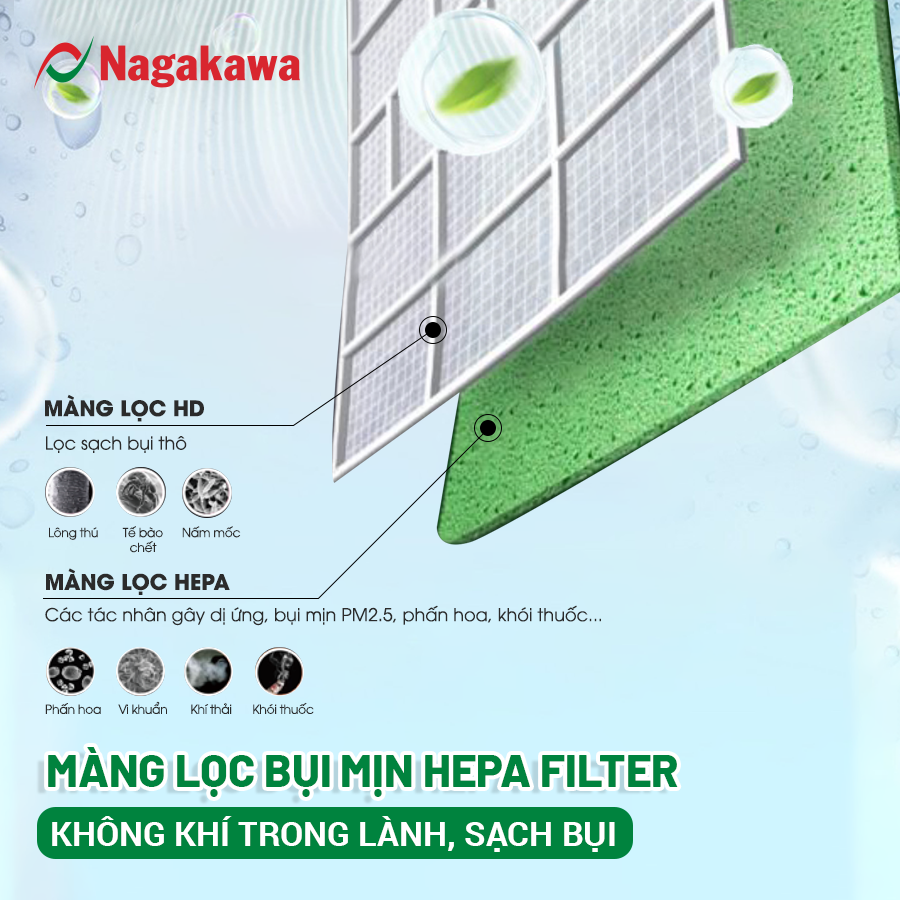

The Hepa Filter is equipped on the Nagakawa air conditioner that allows to filter out all kinds of dust, PM2.5 fine dust in the air to help protect family members from respiratory diseases.
Nagakawa NS-C12R2M09 air conditioner has a cooling capacity of 12,000 BTU, equivalent to 1.5HP, capable of meeting the needs of cooling rooms with an area of from 15-20m2 such as small meeting rooms, bedrooms, living rooms, ...

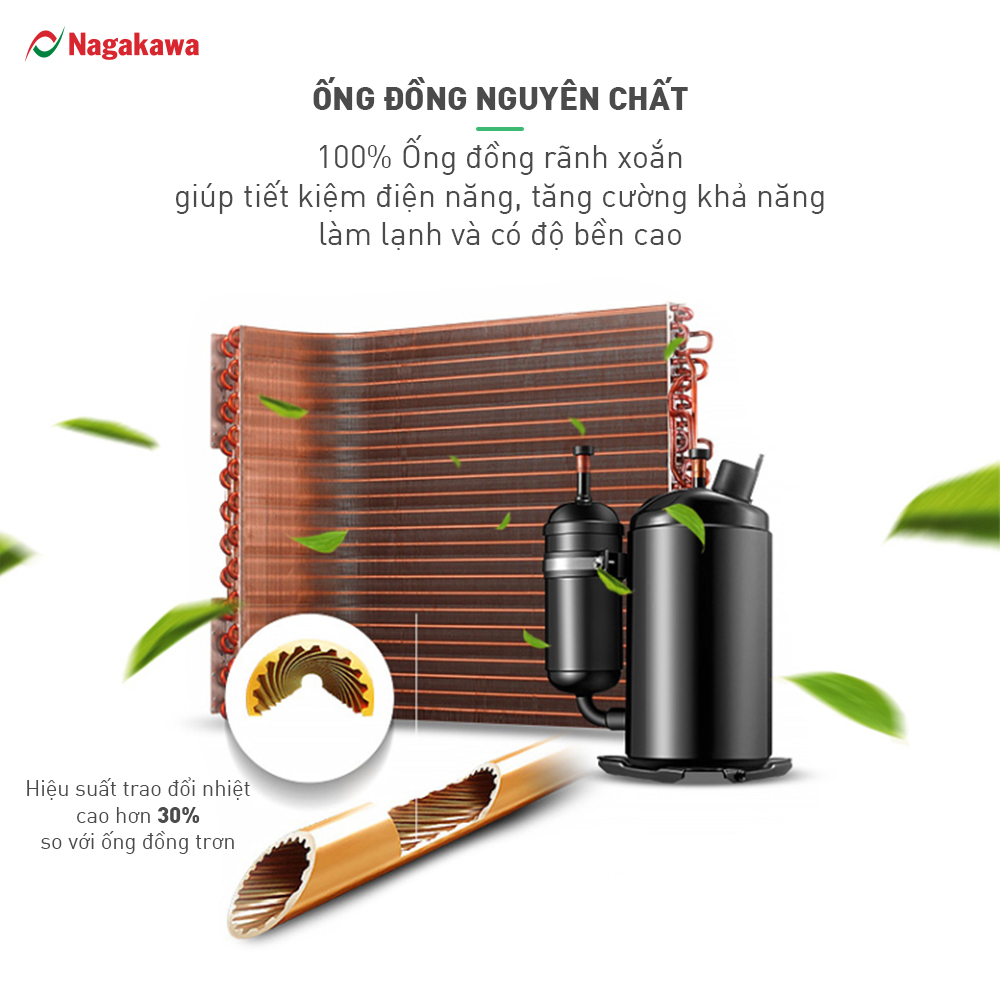

The heat exchanger of the Nagakawa 12000BTU air conditioner consists of copper pipes - aluminum heat sinks covered with gold plated not only for efficient operation but also for increased service life thanks to optimal oxidation resistance.
The air conditioner is designed with a 4-direction self-swing function so that users can enjoy a cool, more even flow of cold air thanks to the airflow spreading evenly throughout the areas in the space.

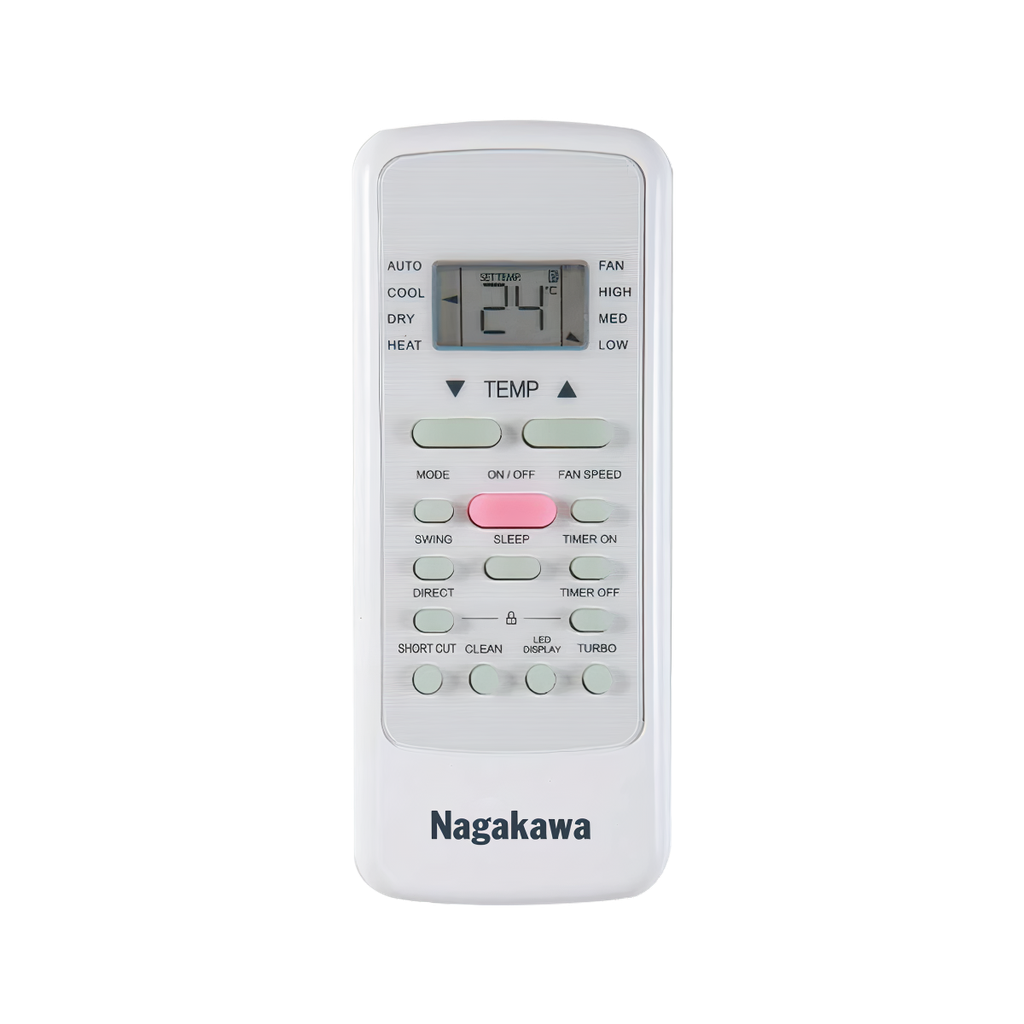

When Turbo fast cooling mode is activated on the remote, the air conditioner will operate at the highest capacity to cool and blow stronger air to help cool the space in a short time.

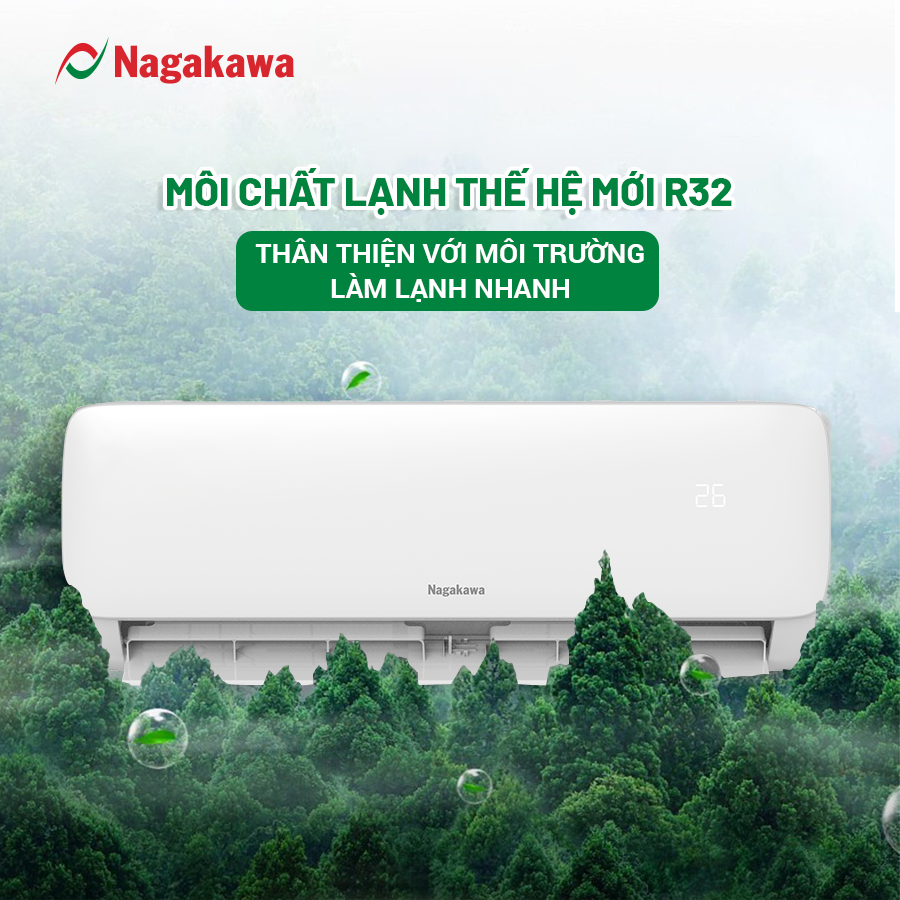

Air conditioner R2M09 uses new generation refrigerant Gas R32 providing more optimal cooling capacity, along with safety and environmental friendliness.
MODEL | NS-C12R2M09 | ||
Cooling capacity | kW | 3.52 | |
Btu/h | 12,000 | ||
Electricity used | W | 1,053 | |
Amperage | A | 5.0 | |
Energy efficiency | Số sao | ⭐⭐ | |
CSPF | 3.52 | ||
Energy supply | V/P/Hz | 220-240V/1 pha/50 Hz | |
COOLER | |||
Airflow (High/Medium/Low) | m3/h | 560/460/350 | |
Moisture removal capacity | L/h | 1.4 | |
Noise Level (High/Medium/Low) | dB(A) | 38/34/29 | |
Dimensions (R x C x S) |
mm | 835 x 295 x 208 | |
Weight | kg | 9.3 | |
OUTDOOR | |||
Noise level | dB(A) | 48 | |
Dimensions (R x C x S) |
mm | 765 x 555 x 303 | |
Weight | kg | 27.3 | |
Refrigerant/Gas charging amount | kg | R32/0.43 | |
Pipe diameter | Liquid | mm | Ø6.35 |
Gas | mm | Ø9.52 | |
Tube length | Standard | m | 5 |
Max | m | 20 | |
Maximum height difference | m | 8 |
